Description

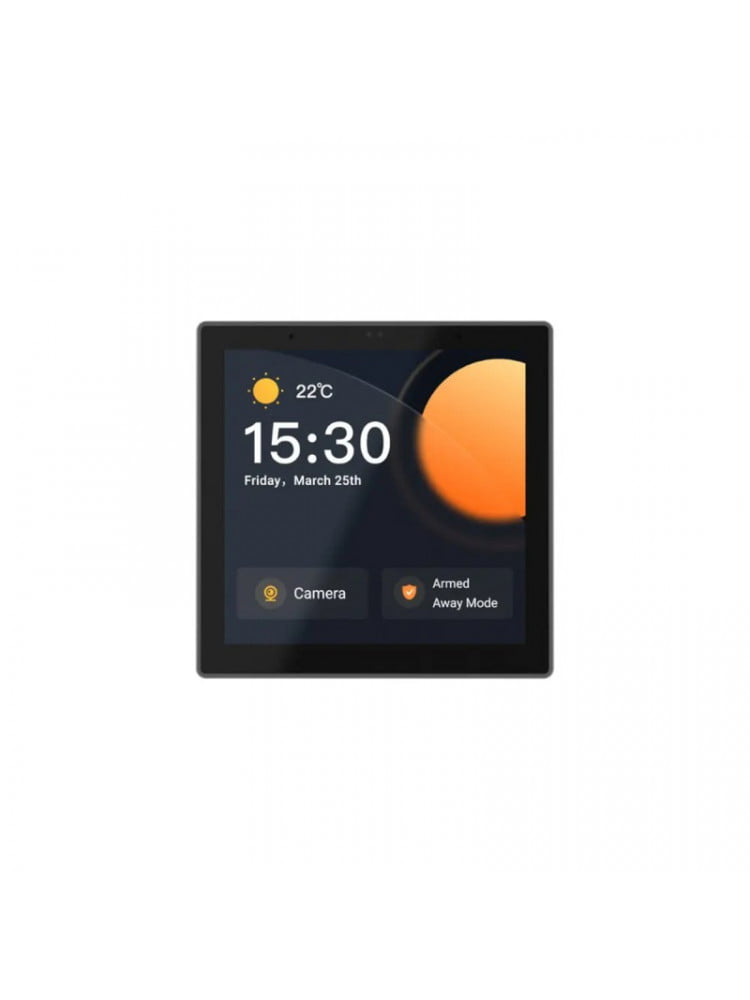

Sonoff NSPanel Pro Smart Home Control Panel
NSPanel Pro is a smart home control panel. Your smart lights, switches, curtains, and all your smart devices can be controlled.
An unlimited number of control devices, all in one panel.
Sonoff NSPanel Pro can quickly add Zigbee devices on the screen in batches. Standard Zigbee 3.0 protocol makes the connection more stable and the coverage wider. Supports all Sonoff Zigbee devices such as Zigbee Sensors, ZBMINI, and BASICZBR3.
NSPanel Pro can be used as a display, and supports adding cameras for live monitoring. Viewing the real-time monitoring of the living room, garage, bedroom, etc on the panel at any time.
Power Consumption Graph, Customize Wallpaper, and Call Intercom.
NSPanel Pro can be used in conjunction with the NSPanel Desk Stand Grey
Note
NSPanel Pro Desk Stand Required MU00012
When power is lost, the QR code on the display must be scanned to activate every time. (No configurations are lost)
NSPanel Pro does NOT have any physical buttons, only a desktop control unit
If you do choose to wall mount, please note the Size is 3×3 not 2×4.
SPECIFICATIONS
Zigbee: IEEE 802.15.4 (Zigbee 3.0)
Wi-Fi: IEEE 802.11 b 2.4GHz
Input:100-240V AC 50/60Hz
Max Power Consumption: 5W MAX; 150mA
TFT Screen Size: 3.95″ (Capacitive Screen)
Screen Resolution: 480 x 480
MCU: PX30
CPU: 4-cores Cortex-A35
GPU: Mali-G31GPU
RAM: 2GB, DDR3
ROM: 8GB, eMMC 5.1
Certifications: CE/UKCA/ SRRC/RoHS
Shell Materials: PC V0+CRS+Toughened Glass
Dimension: 86x86x39.5mm
WHAT’S IN THE BOX
1 X Sonoff NSPanel Pro Grey
