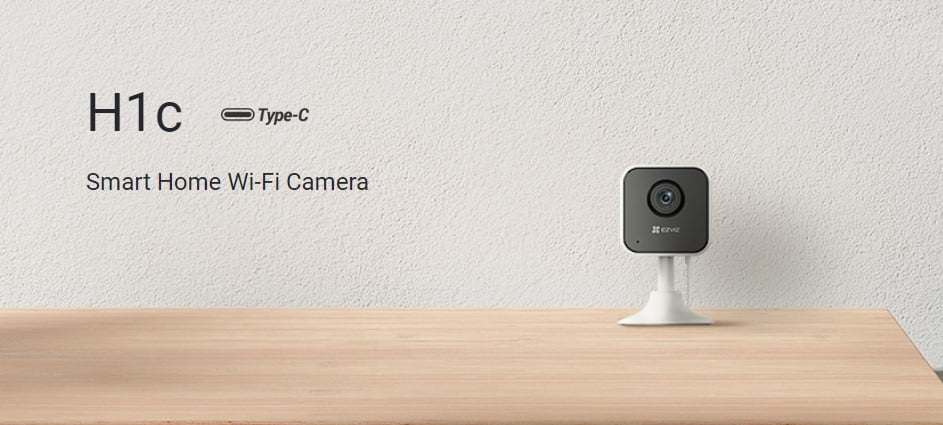

Ezviz H1C 1080p Smart Home WiFi Camera

Simple but reliable, the H1c can be your essential indoor camera to keep an eye on your kids and pets, while offering protection to your home from day to night. As a petite, plug-in camera that fits any home space, the camera gets all the basics right. It offers great video quality, sharp night vision, motion detection and two-way audio, and provides extra convenience with its easy-to-install design, sleep mode, three sound-alert modes, and more.

The camera renders vivid, clear details in 1080p video, and can watch over a large indoor space with its 108° wide-angle lens.

The camera protects your sweet dreams even in dim lights. It captures activities with sharp night vision of up to 10 meters

The camera captures motions and alerts you immediately. You can view alert details and replay captured videos all on your mobile phone.

Setting up the H1c is a breeze. Place it on any flat surface, or snap it onto any metallic wall with the included magnetic base.

You can now hear camera detections from afar. The H1c offers three audio alert modes – silent, short beep, and siren.

The H1c’s full-duplex audio allows you to talk to your loved ones from wherever you are, by simply using the EZVIZ App.

With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google”.

Capture and secure important moments or unforgettable memories on a large 512 GB microSD card, or by subscribing to the EZVIZ CloudPlay.

We respect your home as your special space. That’s why EZVIZ builds complex security systems, safeguarding your device and data. You can also enable Sleep Mode on the H1c when needed, which stops all camera activities.

SPECIFICATIONS

Model
CS-H1c
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens
2.4mm, view angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical)
Minimum Illumination
0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR
Lens Mount
M12
Day & Night
IR-cut filter with auto-switching
DNR 3D DNR
IR Night Vision Distance
Up to 10 m
Video & Audio
Max. Resolution
1920 × 1080
Frame Rate Max
25 fps
Self-Adaptive during network transmission
Video Compression
H.264
H.264 Type Main Profile
Video Bit Rate
HD; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 1 Mbps
Function
Smart Alert Motion detection
Two-way Talk Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image,
Password Protection, Watermark
Network
Standard
IEEE802.11b, 802.11g, 802.11n
Frequency Range
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports
20 MHz
Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing
AP pairing
Protocol
EZVIZ Cloud Proprietary Protocol
Interface Protocol
EZVIZ Cloud Proprietary Protocol
Storage
Local Storage Supports
microSD card (Up to 512 GB)
Cloud Storage Supports
EZVIZ CloudPlay storage (subscription required)
General
Operating Conditions
-10 ºC ~ 45 ºC , Humidity 95% or less (non-condensing)
Power Supply
DC 5V / 1A
Power Consumption
MAX. 3.0 W

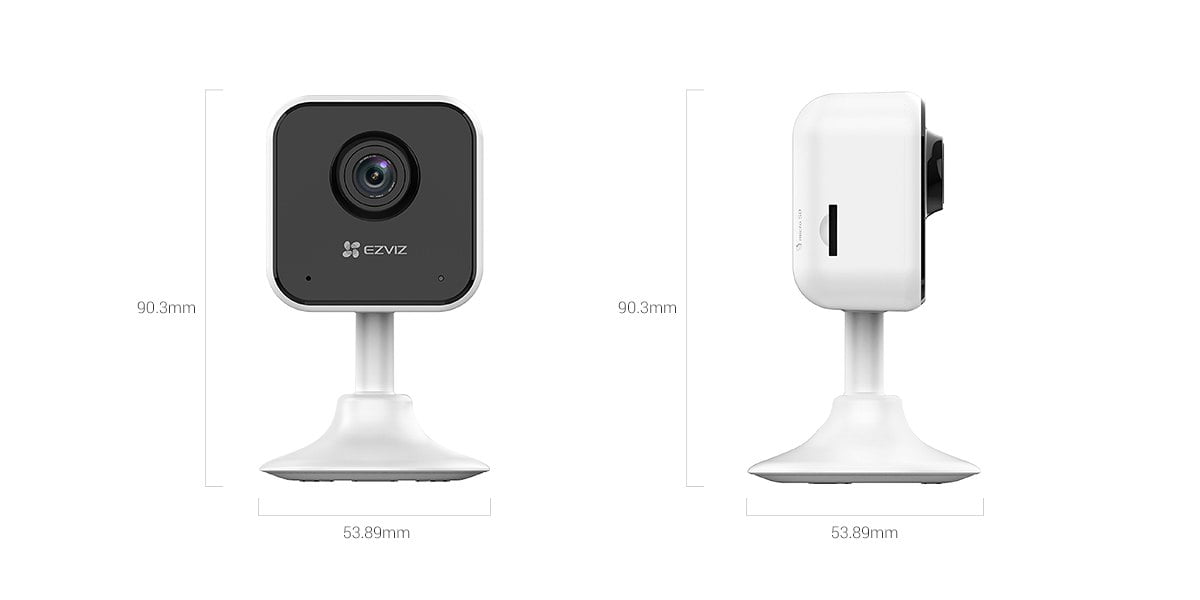

Dimensions
53.89 × 53.89 × 90.3 mm
Packaging Dimensions
91.5 × 87.5 × 149 mm
Net Weight
87 g
Weight (With Package)
305 g
Certifications
CE/RoHS/WEEE/REACH

WHAT’S IN THE BOX

1 X H1c Camera
1 X Power Adapter
1 X 2-Meter Power Cable
2 X Foam Sticker
1 X Metal Plate
2 X Regulatory Information
1 X Quick Start Guide
