IMOU Doorbell 3 4MP AI Battery Panoramic View Camera Wi-Fi Kit

True 360° Panoramic View

The IMOU Doorbell 3 delivers a full 360° panoramic view through its fisheye lens, helping minimise blind spots around your entrance. The panoramic design can provide a wider view of visitors and activity directly in front of your property.

4MP 2K+ Image Quality

The Doorbell 3 features a 4MP progressive CMOS sensor with a 1920 × 1920 resolution, delivering detailed square-format video designed to provide a wide view of your entrance area.

Head-to-Toe Viewing

The panoramic camera can be configured for different viewing modes, including horizontal correction, vertical correction and VR mode. The head-to-toe view is particularly useful for narrow entrance areas where seeing visitors from head to foot is important.

5m Infrared Night Vision

Built-in infrared night vision provides visibility up to approximately 5 metres, allowing the Doorbell 3 to continue monitoring your entrance after dark.

AI Human Detection

The Doorbell 3 uses PIR motion detection together with AI human detection to help distinguish people from general movement. This allows the system to provide more relevant notifications when activity is detected around your entrance.

AI Package Detection

AI package detection helps identify deliveries at your doorstep, giving you greater awareness when parcels are left at your entrance.

Loitering Detection

The Doorbell 3 also supports loitering detection, helping notify you when activity remains around the monitored entrance area.

100% Wire-Free Operation

The rechargeable 5,000mAh battery allows the video doorbell to operate wirelessly, making installation more flexible without requiring a permanent power cable. IMOU also provides an optional hardwired power connection for compatible installations.

Rechargeable 5,000mAh Battery

The integrated 5,000mAh rechargeable battery provides extended operation between charges. Battery life varies according to usage and operating mode, with IMOU specifying different expected durations depending on trigger frequency and power-saving settings.

Automatic Power Saving Mode

Automatic power-saving functionality helps reduce energy consumption when the doorbell is not actively recording. This is particularly useful for a battery-powered security device where maximising time between charges is important.

Two-Way Talk

The built-in microphone and speaker allow two-way communication through the doorbell. You can communicate with visitors remotely using the IMOU app without needing to open the door.

8× Digital Zoom

The Doorbell 3 supports up to 8× digital zoom, allowing you to enlarge areas of the recorded or viewed image when additional detail is required.

H.265 Video Compression

H.265 video compression helps reduce bandwidth and storage requirements compared with older compression standards while maintaining efficient video quality.

Wi-Fi Connectivity

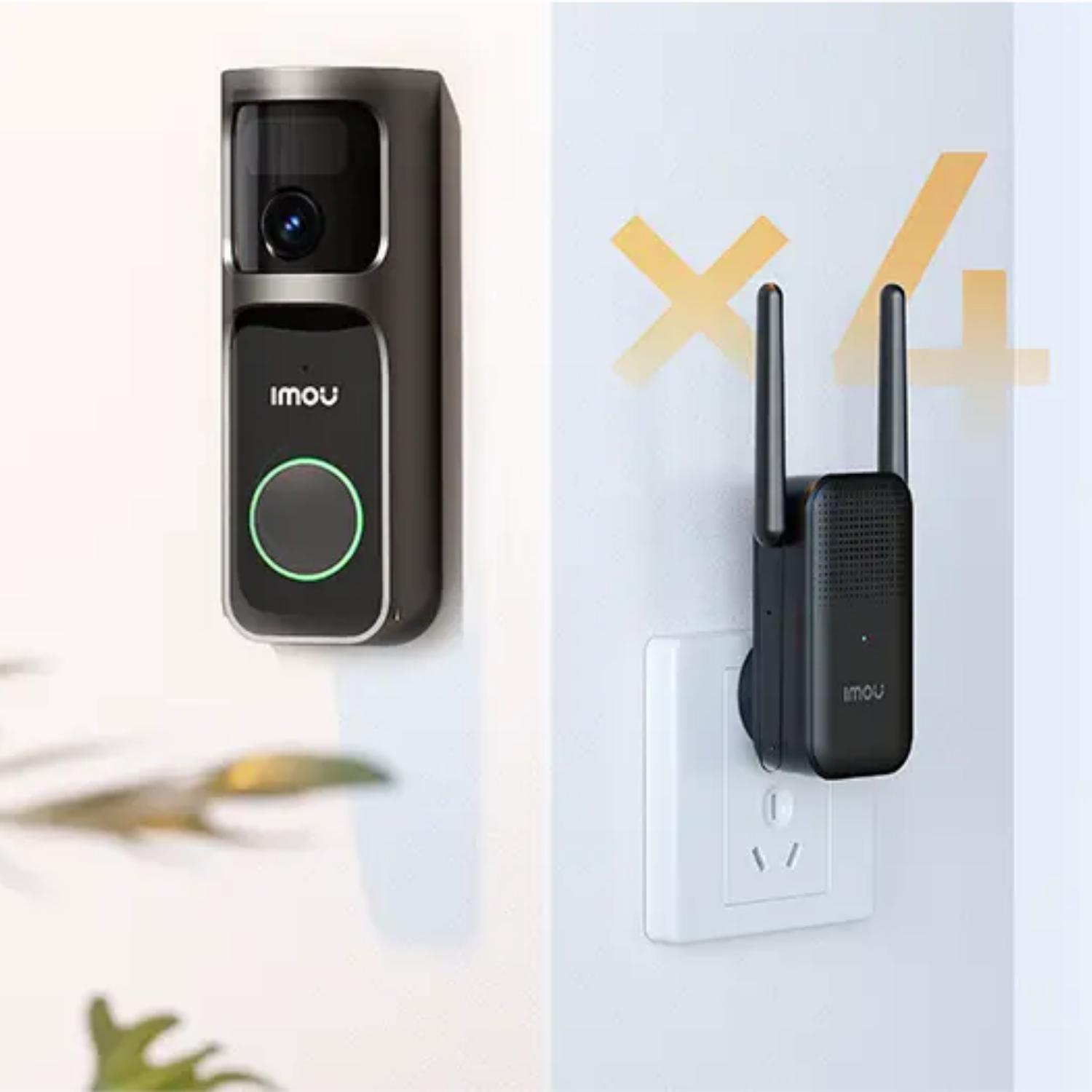

The doorbell connects using 2.4GHz Wi-Fi and supports IEEE 802.11b/g/n. The included chime also works as a Wi-Fi extender for the doorbell, helping provide a more reliable connection between the doorbell and your network.

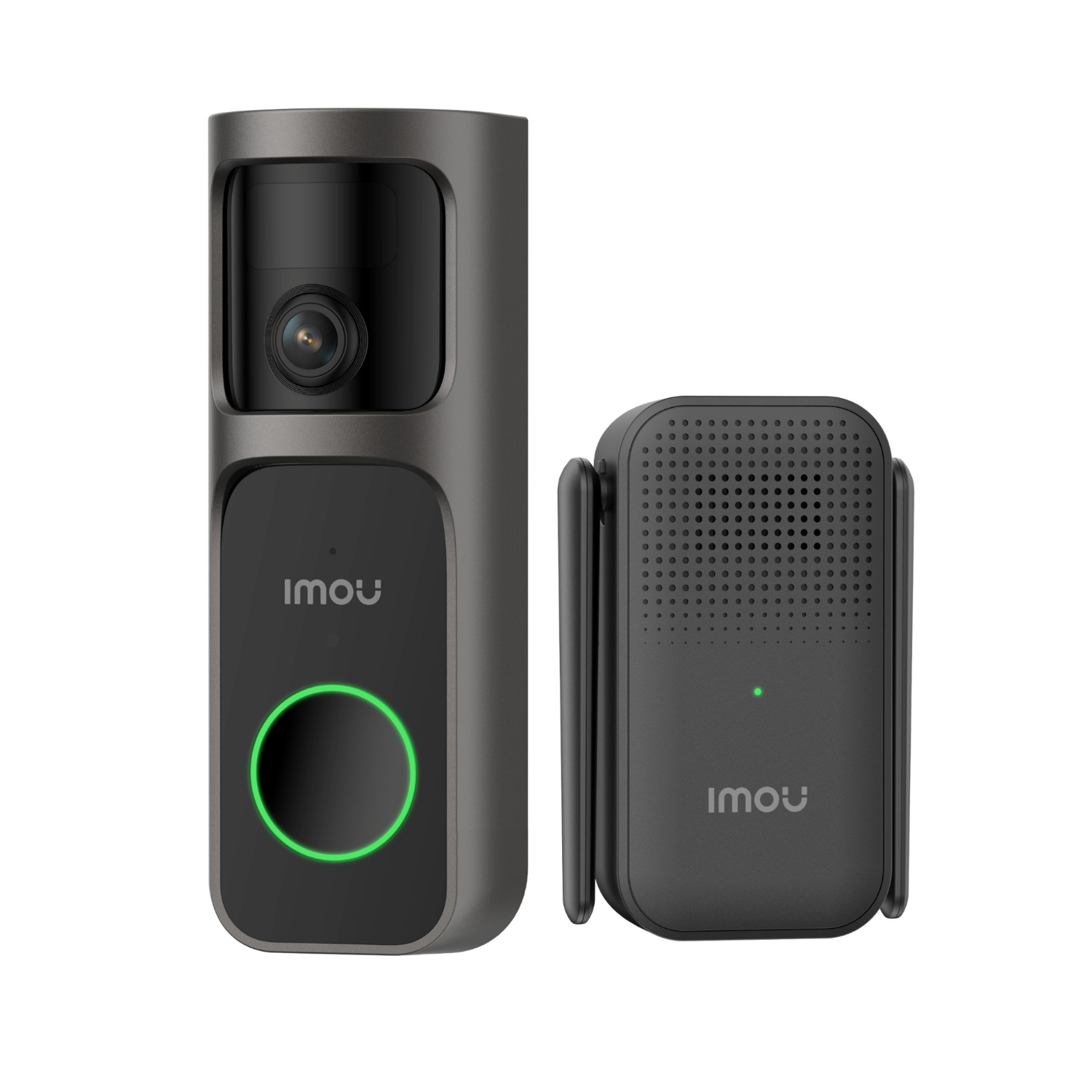

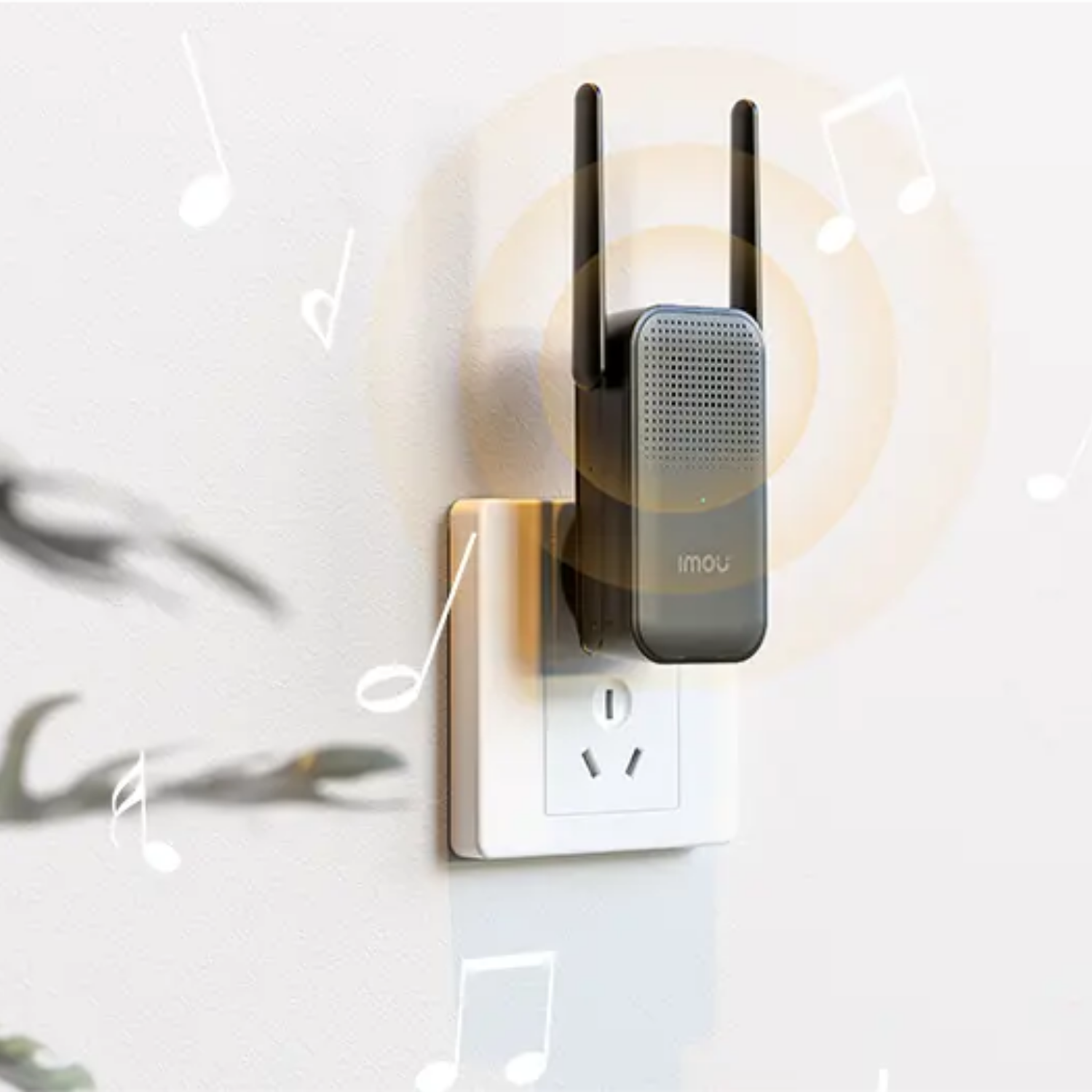

Chime Included

The kit includes a dedicated indoor chime with a built-in speaker, providing an audible alert when the doorbell is pressed. The chime also incorporates the MicroSD card slot for local storage.

Local MicroSD Storage

The included chime supports a MicroSD card of up to 512GB, allowing compatible recordings to be stored locally. This provides an alternative to relying solely on cloud-based storage.

IMOU App Control

Use the IMOU app on compatible iOS and Android devices to access the doorbell, receive notifications and interact with visitors remotely.

Weatherproof Outdoor Design

The video doorbell is designed for outdoor installation and is specified as weatherproof, with an operating temperature range of approximately -20°C to +50°C.

Optional Hardwired Power

Although designed for battery operation, the Doorbell 3 supports an optional 8–24VAC hardwired power supply with a minimum 5VA requirement, providing additional installation flexibility where permanent power is preferred.

Flexible Installation

The kit includes a surface mounting bracket, screws, extension wires, jumper wire and mounting accessories, giving you the components needed for a flexible installation at your entrance.

Compact Doorbell Design

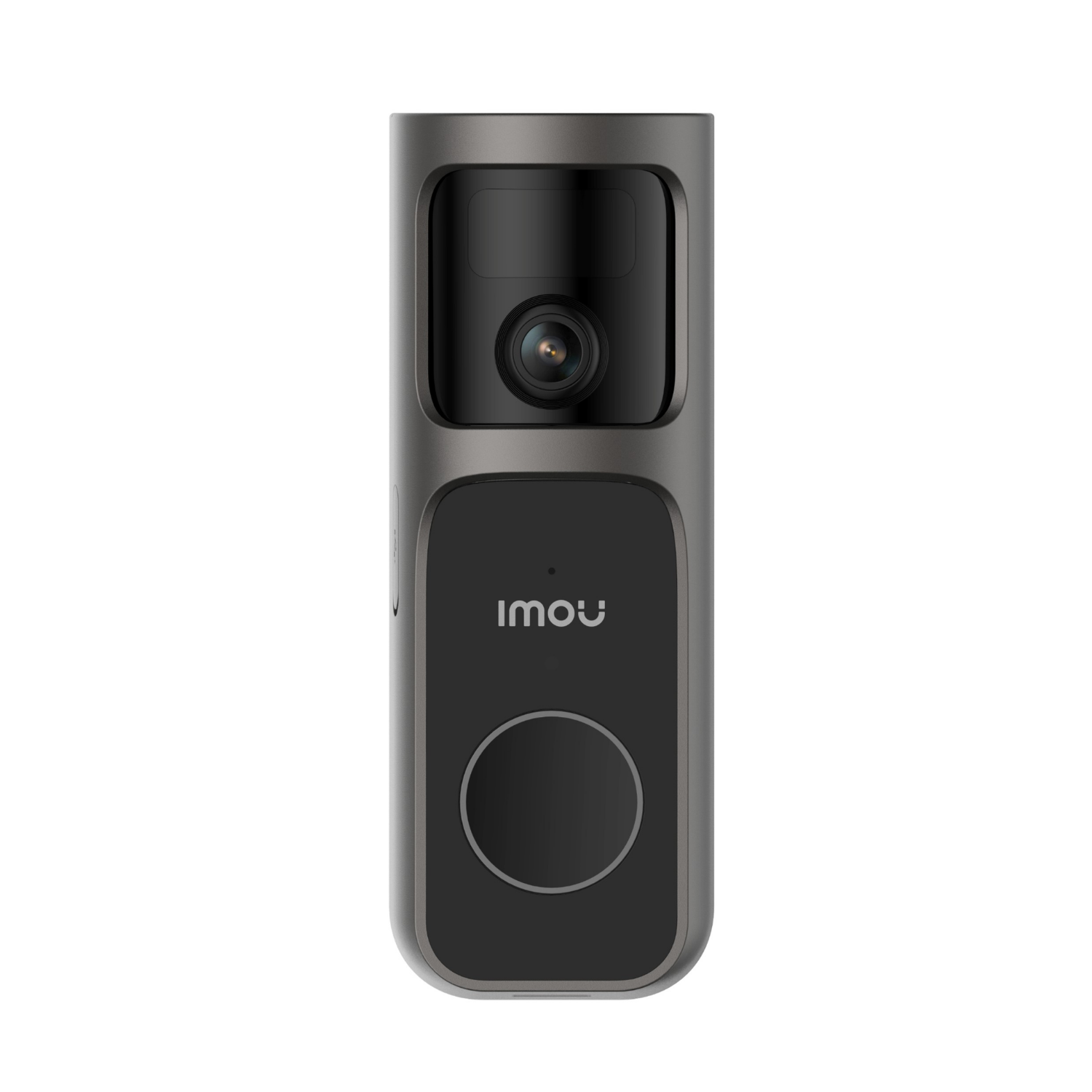

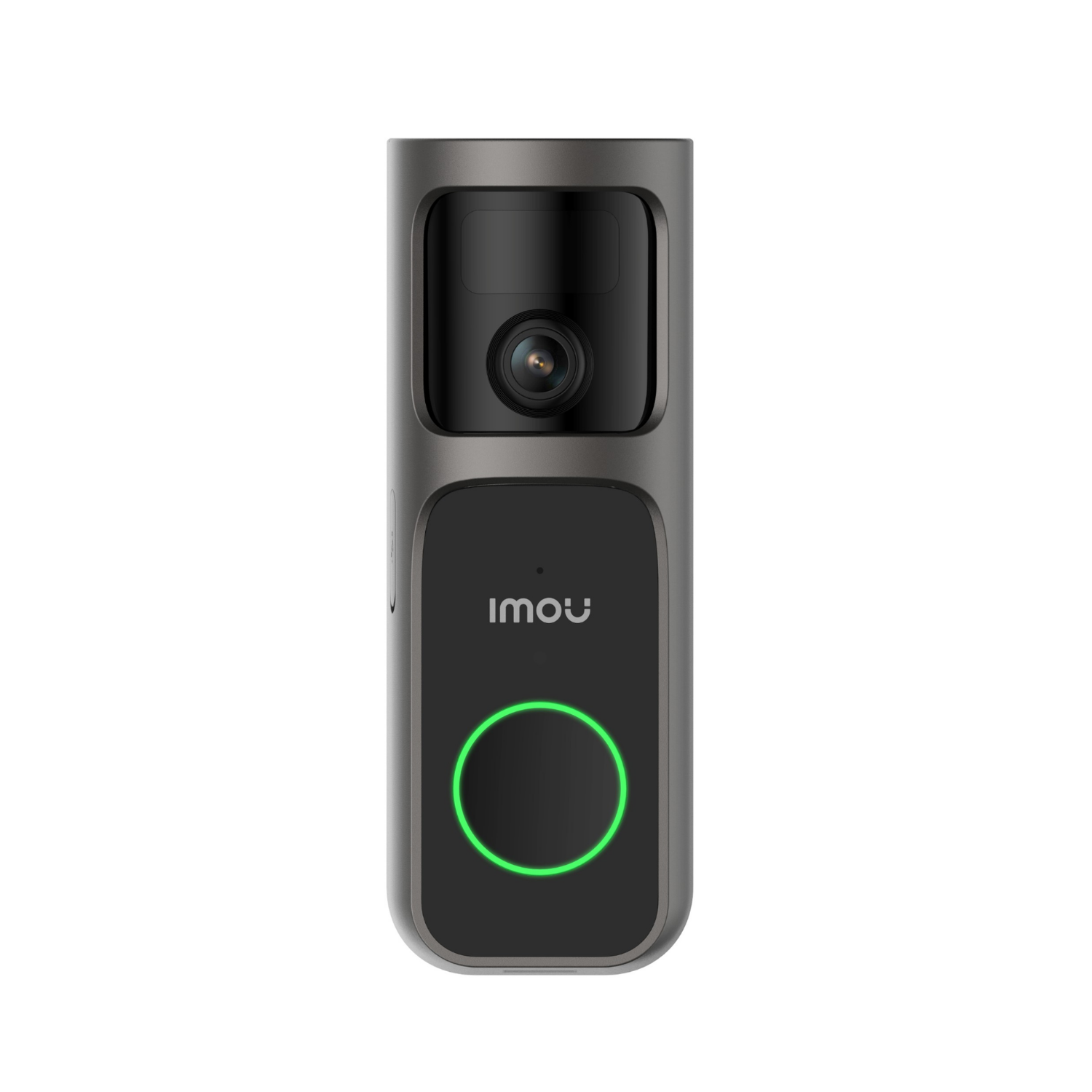

The video doorbell measures approximately 150 × 55 × 50.3mm and weighs around 220g. The included chime measures approximately 95.5 × 65.1 × 30.2mm and weighs around 79g.

Key Features

• IMOU Doorbell 3 Wi-Fi Kit
• 4MP QHD image quality
• 1920 × 1920 resolution
• 360° panoramic view
• 180° horizontal field of view
• 180° vertical field of view
• 0.98mm fisheye lens
• 5m infrared night vision
• PIR motion detection
• AI human detection
• AI package detection
• Loitering detection
• 5,000mAh rechargeable battery
• 100% wire-free operation
• Automatic power-saving mode
• Two-way talk
• Built-in microphone and speaker
• 8× digital zoom
• H.265 video compression
• Up to 15fps
• 2.4GHz Wi-Fi
• IEEE 802.11b/g/n
• Included Wi-Fi chime
• Chime functions as Wi-Fi extender
• MicroSD storage up to 512GB via chime
• IMOU app for iOS and Android
• Optional 8–24VAC hardwired power

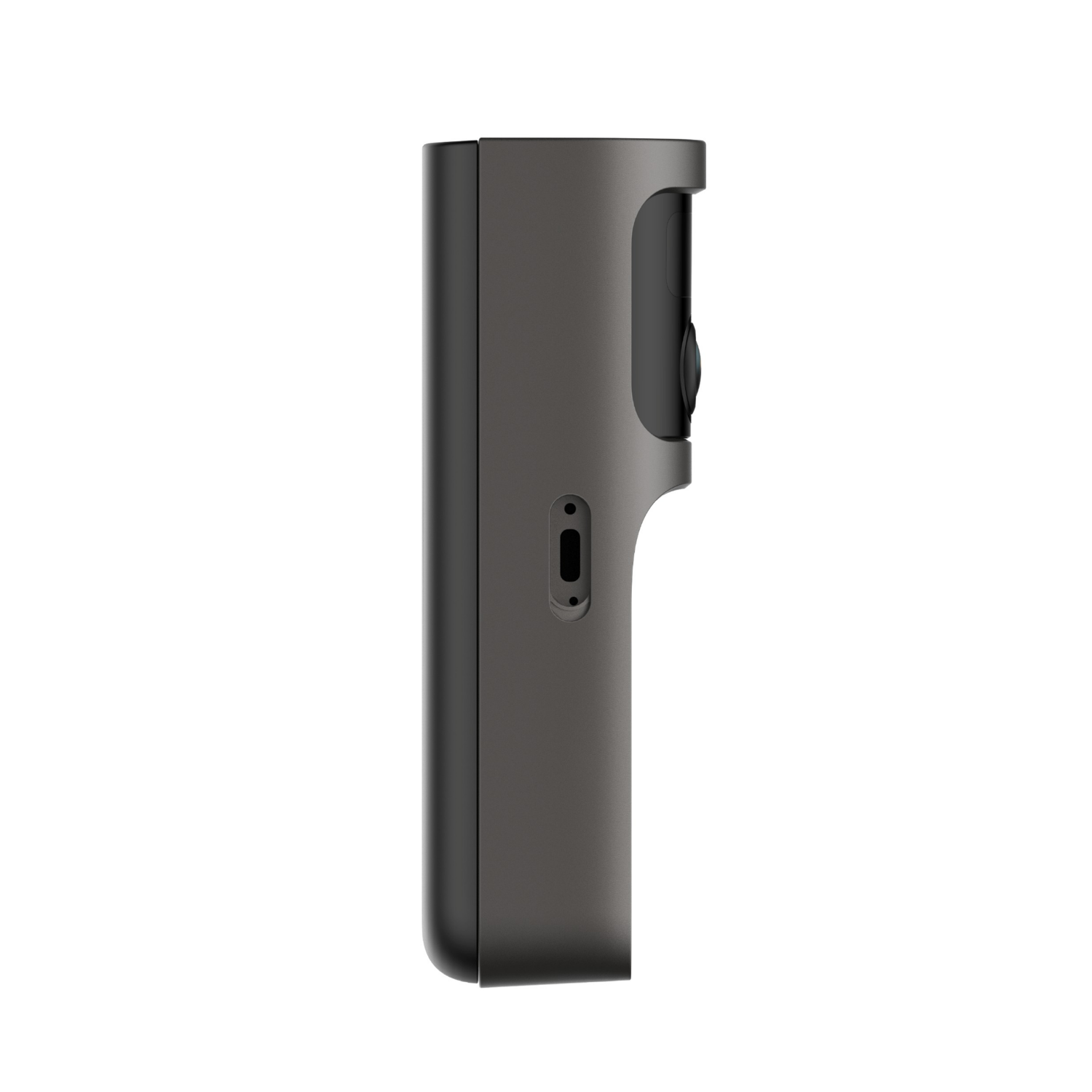

• Type-C charging
• Weatherproof design
• Doorbell dimensions: 150 × 55 × 50.3mm
• Doorbell weight: approximately 220g
• Chime dimensions: 95.5 × 65.1 × 30.2mm
• Chime weight: approximately 79g
