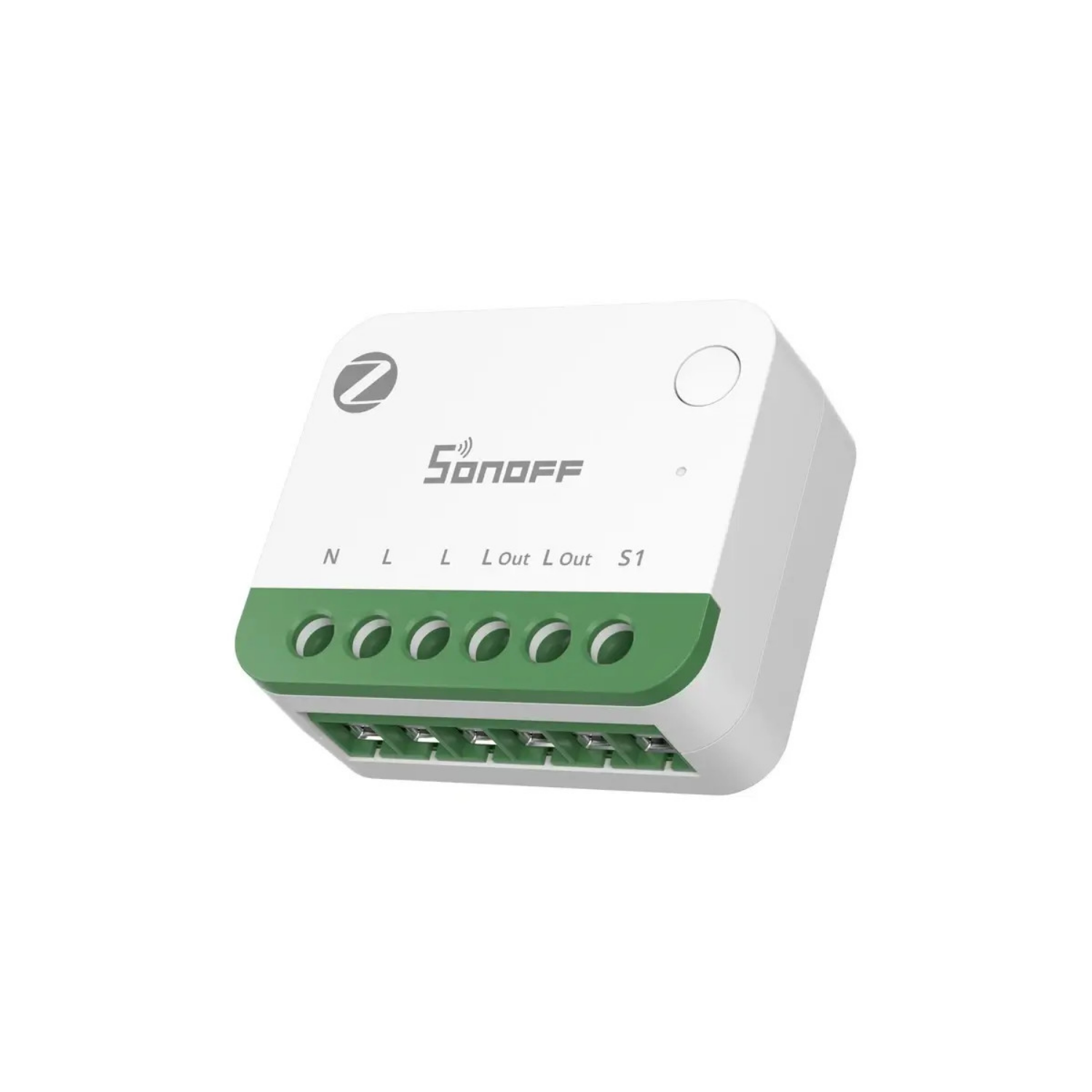

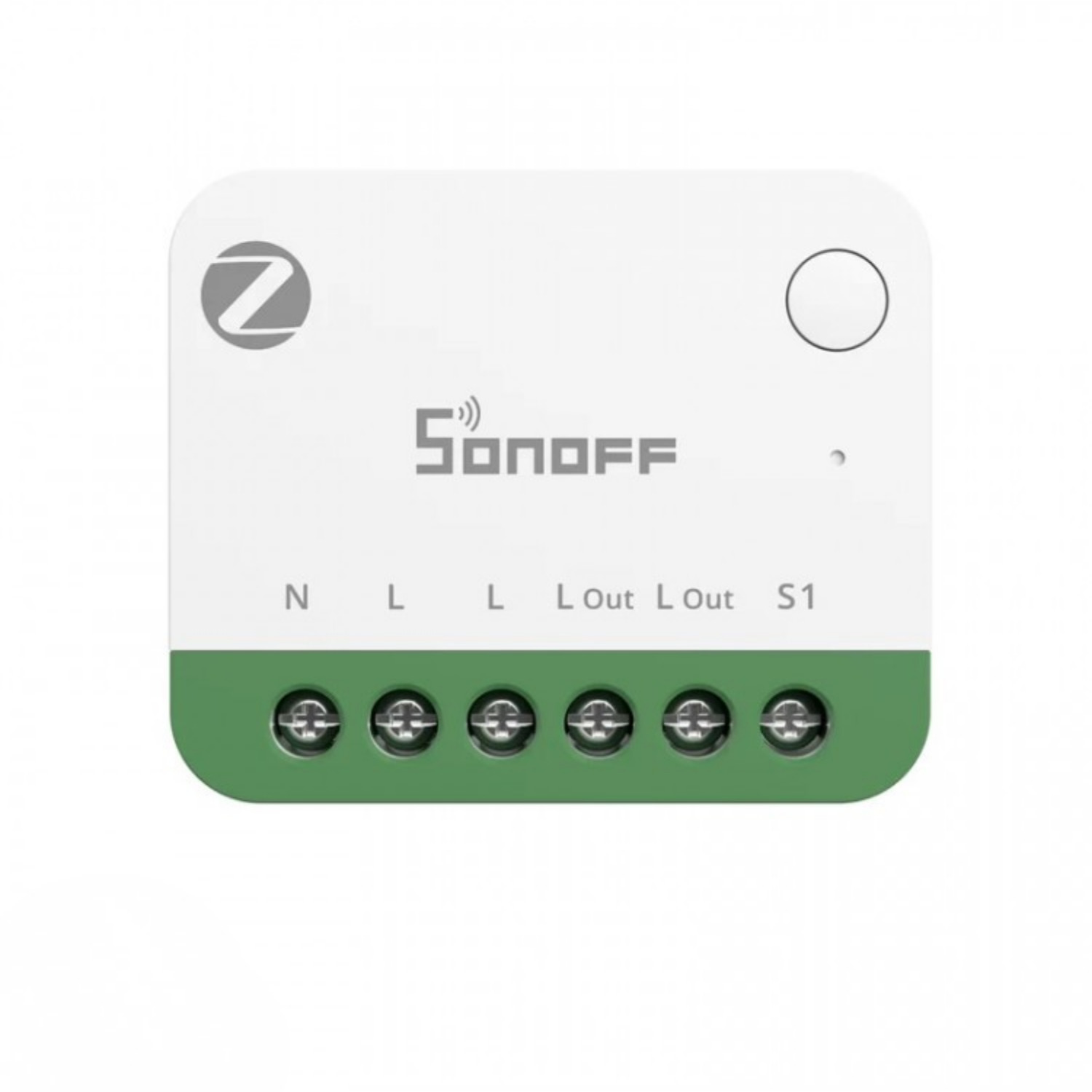

SONOFF MINI 16A – Zigbee

The SONOFF MINI 16A (Zigbee), model MINI-ZB1GS, is a compact Zigbee 3.0 smart switch designed to control higher-power electrical loads of up to 16A. It provides smart control while fitting neatly into suitable wall boxes, making it a practical choice for upgrading lighting and compatible appliances.

Up to 16A Load Capacity

With support for loads up to 16A, the MINI-ZB1GS offers greater load compatibility than the previous ZBMINIR2. This makes it suitable for a wider range of compatible electrical devices and appliances.

Zigbee 3.0 Connectivity

The MINI-ZB1GS uses Zigbee 3.0 and connects to a compatible Zigbee hub or gateway. It can be incorporated into a wider smart home system for local automation and convenient control.

Smart Overheating Protection

Built-in temperature sensing continuously monitors the device temperature. If the temperature approaches the safety threshold, the relay can automatically disconnect the output, helping provide additional protection for the connected device and electrical installation.

Direct Zigbee Device Control

Zigbee Binding allows the MINI-ZB1GS to communicate directly with compatible Zigbee devices such as wireless switches, door and window sensors, and temperature and humidity sensors. This enables local device-to-device control without relying on cloud-based automation.

Zigbee Router Function

The MINI-ZB1GS can also operate as a Zigbee router, helping extend the Zigbee network and improve communication with compatible devices throughout your smart home.

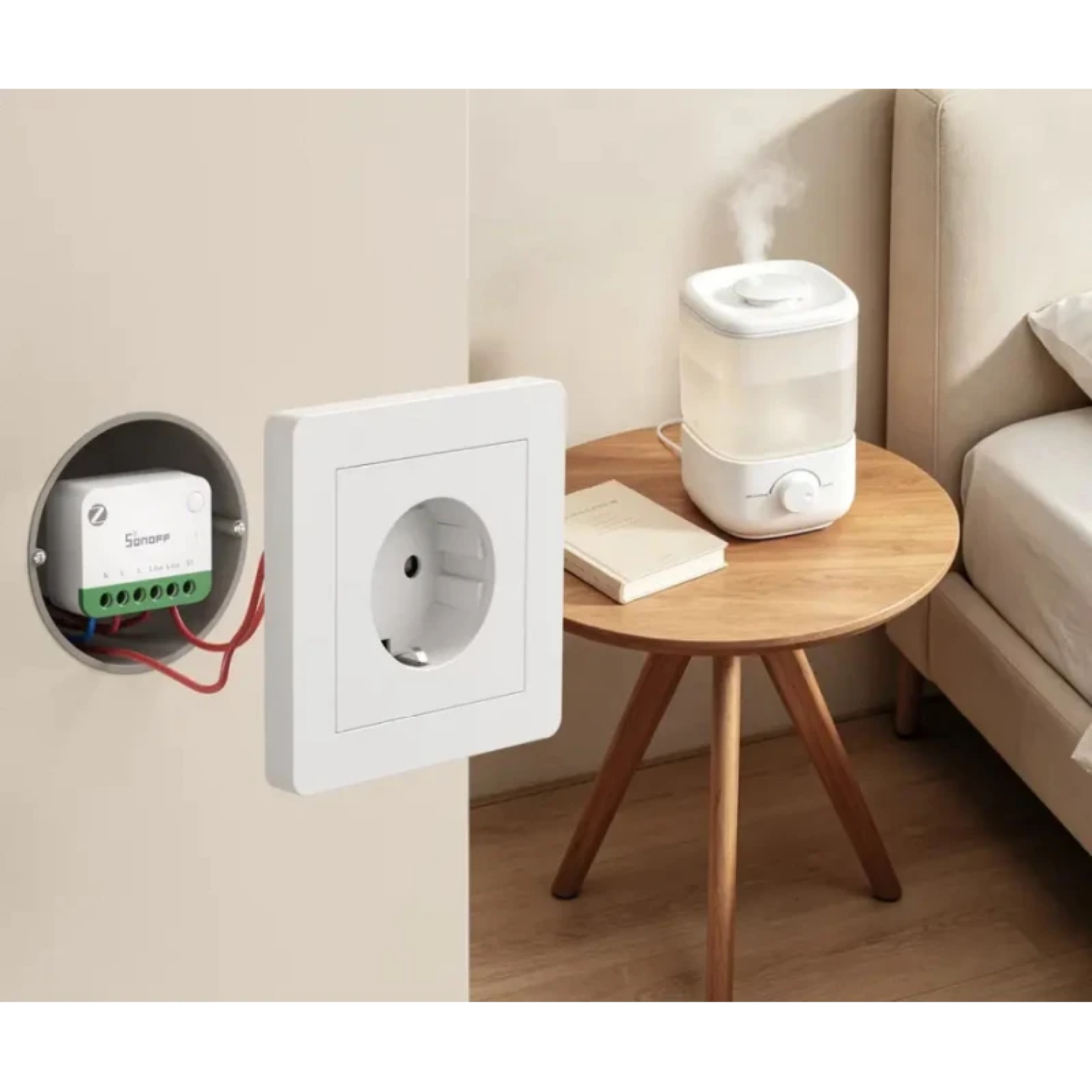

Compact Installation

Despite its 16A capability, the MINI-ZB1GS maintains a compact design measuring approximately 39.5 × 33 × 16.8 mm. It is designed to fit suitable standard wall boxes, including EU-standard, 86-type and 120-type boxes.

Key Features

• Zigbee 3.0 smart switch
• Up to 16A maximum resistive load
• 100–240V AC, 50/60Hz
• Built-in temperature sensing
• Smart overheating protection
• Zigbee Binding for direct local control
• Zigbee router functionality
• Compatible with suitable Zigbee hubs and gateways
• Compact 39.5 × 33 × 16.8 mm design
• Suitable for standard compatible wall boxes
• Model: MINI-ZB1GS
