SONOFF NSPanel Smart Display Switch – 2CH WiFi Touchscreen Smart Wall Panel

Smart Control Centre for Your Home

The SONOFF NSPanel Smart Display Switch combines a dual-channel smart wall switch, touchscreen control panel and temperature management functions in one sleek wall-mounted device. It provides a convenient central interface for controlling compatible SONOFF devices and smart scenes through the integrated display and eWeLink ecosystem.

3.5-Inch Touchscreen Display

NSPanel features a 3.5-inch capacitive TFT touchscreen with a 480 × 320 resolution. The touchscreen provides an intuitive interface for accessing connected devices, scenes, temperature information, weather, time and other smart-home functions.

Dual-Channel Smart Wall Switch

The NSPanel includes two independent physical switch channels, allowing you to control two connected lighting circuits or suitable electrical loads directly from the wall panel. The physical buttons also retain familiar manual control alongside touchscreen and app-based operation.

All-in-One Smart Home Control

Use NSPanel as a central control point for compatible SONOFF devices and smart scenes. It can bring multiple smart-home functions together on one wall-mounted interface, reducing the need to manage individual devices separately.

eWeLink App Control

The NSPanel works with the eWeLink app, allowing you to manage supported devices and smart scenes from your smartphone. The system supports Android and iOS devices for convenient remote smart-home management.

Built-In Temperature Control

With its built-in temperature sensor and thermostat functionality, NSPanel can be used to monitor indoor temperature and create temperature-based automation. When paired with compatible smart switching equipment, it can trigger heating or cooling equipment according to configured conditions.

Real-Time Weather and Environmental Information

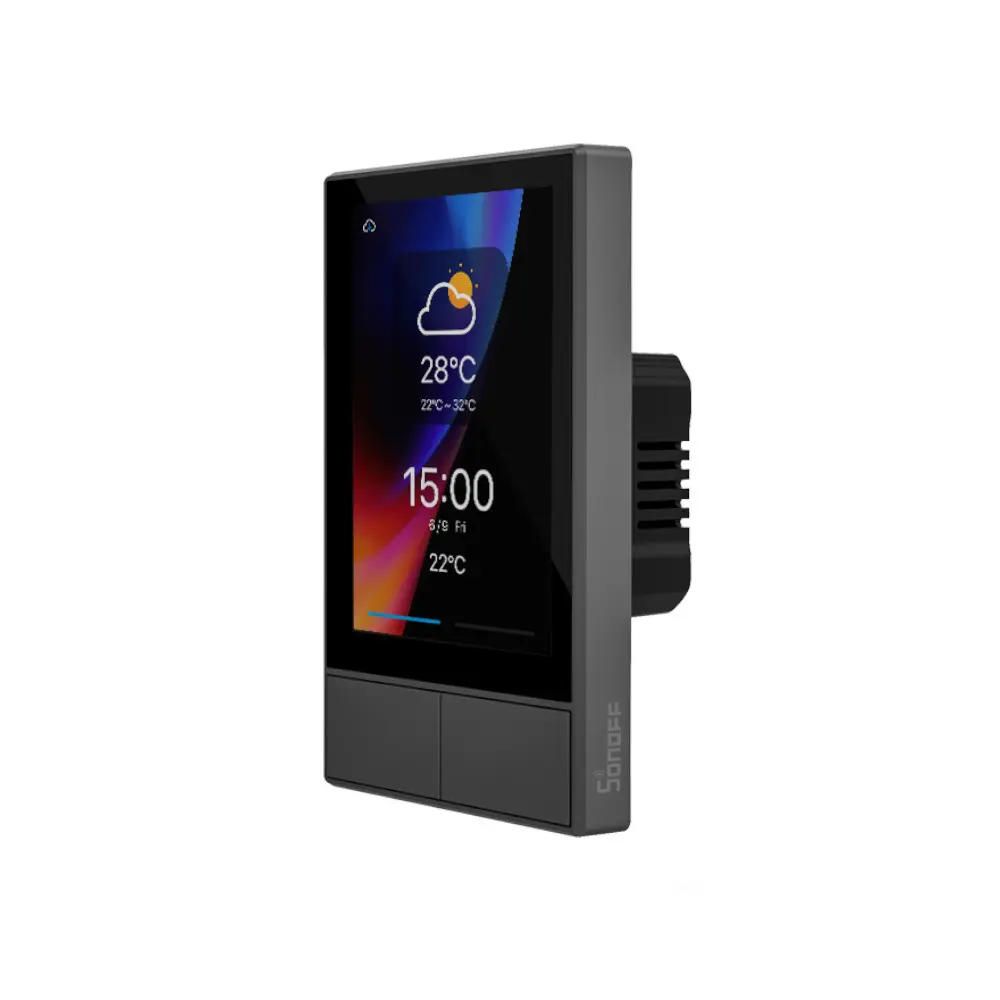

The integrated display can show information including weather, indoor temperature, outdoor temperature, time and date, giving you useful environmental information directly from the wall panel.

Voice Control Compatibility

NSPanel supports voice control through compatible platforms including Amazon Alexa and Google Assistant, while Siri Shortcuts are also supported. This allows compatible smart-home functions to be controlled using voice commands.

2.4GHz WiFi Connectivity

The NSPanel connects to your smart-home network using 2.4GHz IEEE 802.11 b/g/n WiFi. Bluetooth 4.2 BLE is also incorporated for supported setup and connectivity functions.

Designed for a Modern Wall Installation

The NSPanel combines a touchscreen, physical buttons and glass-fronted design into a compact wall-mounted form factor. The 120-type version measures approximately 120 × 74 × 41.7mm, making it suitable for installations using the corresponding wall-switch format.

Smart Scenes Made Simple

Create and access smart scenes from the NSPanel interface to coordinate compatible smart-home devices. The panel can also control devices indirectly through eWeLink smart scenes when a device is supported as an action within the scene.

Suitable for Lighting and Smart-Home Automation

NSPanel can be used as part of a broader SONOFF smart-home system for applications such as lighting, heating, cooling, curtains and other compatible devices. It provides a central touchscreen interface while retaining conventional physical switch control.

Electrical Specifications

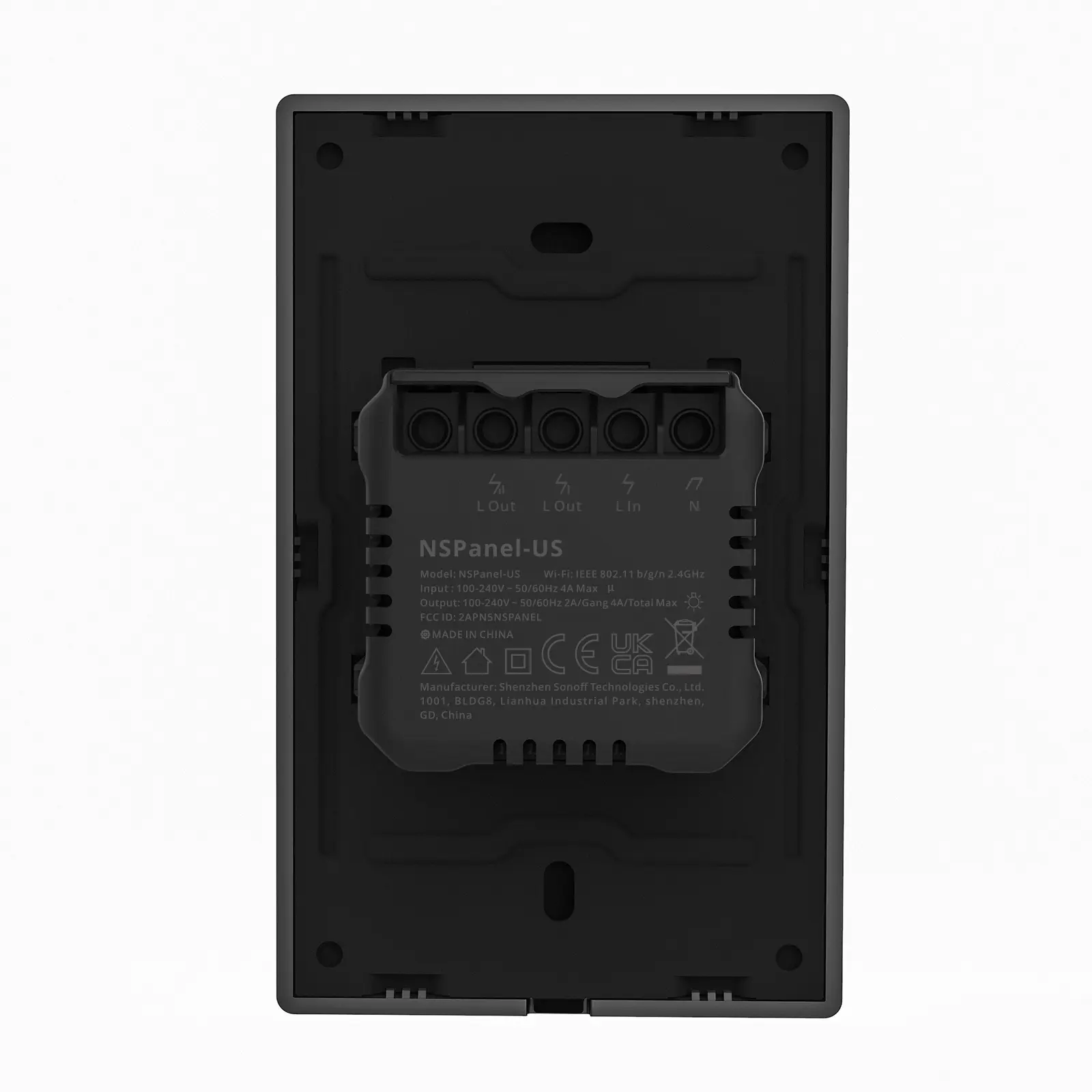

The NSPanel operates from 100–240V AC at 50/60Hz. Its rated output is up to 2A per gang and 4A total. For 220V applications, the published LED load specification is up to 300W per gang and 600W total.

Built for Indoor Smart-Home Applications

The NSPanel uses a PC V0, CRS and toughened-glass construction and is designed as an indoor smart wall control panel. Its compact design integrates the smart switching hardware and touchscreen into a single installation.

Key Features

• 3.5-inch capacitive touchscreen
• 480 × 320 TFT display
• Dual-channel smart wall switch
• 2.4GHz WiFi connectivity
• Bluetooth 4.2 BLE
• eWeLink app control
• Built-in temperature sensor
• Built-in thermostat functionality
• Real-time weather, temperature, time and date display
• Smart scene control
• Physical dual-channel buttons
• Amazon Alexa compatibility
• Google Assistant compatibility
• Siri Shortcuts support
• 100–240V AC input
• 2A per channel / 4A total output
• PC V0 + CRS + toughened glass construction
• 120 × 74 × 41.7mm 120-type dimensions
• Designed for indoor installation
