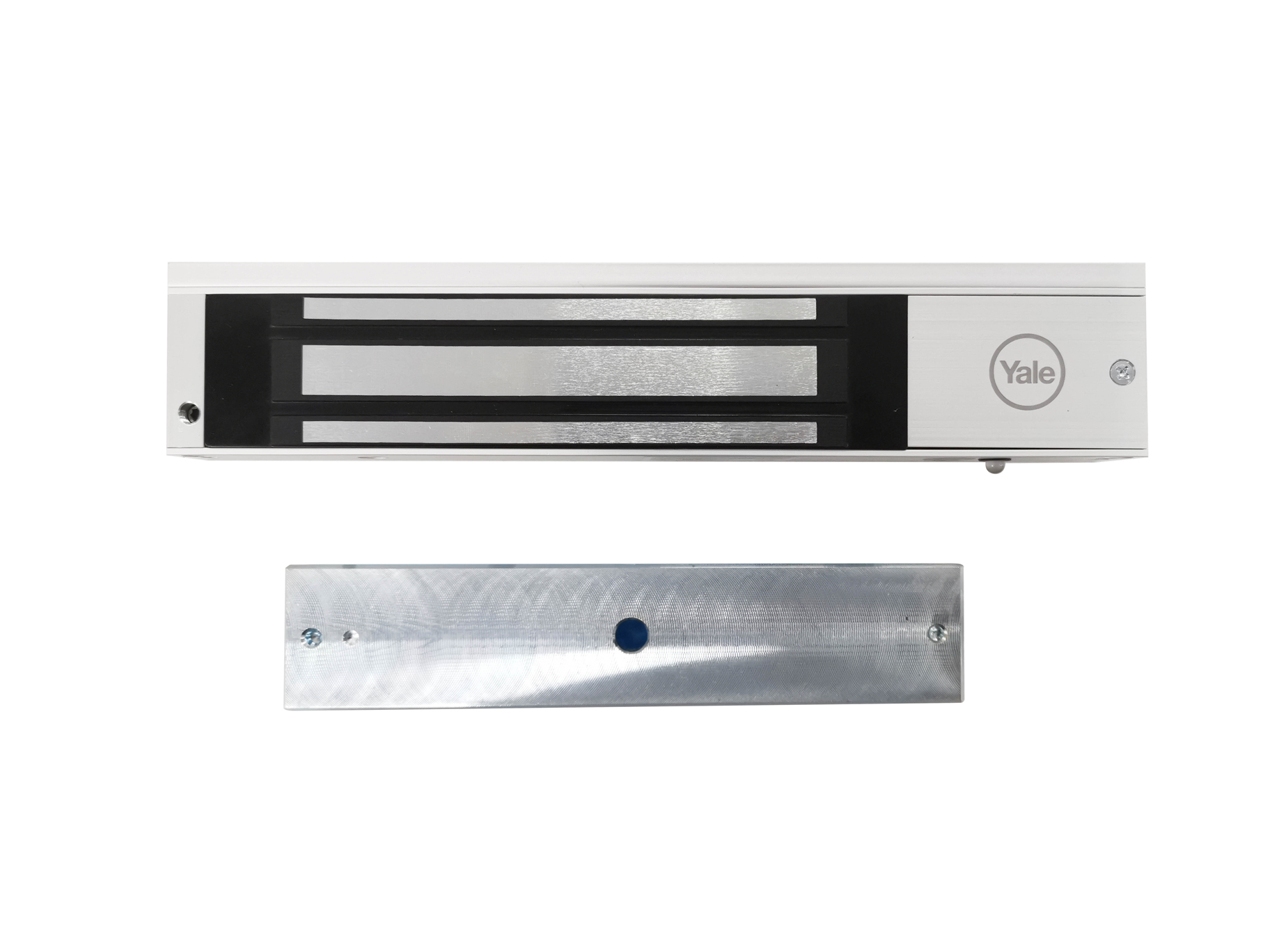

Yale 272kg Maglock with LED

YALE 865-19-602 Magnetic Lock – 600lbs Holding Force

Upgrade your access control system with the YALE 272kg Electromagnetic Lock, designed for reliability, safety, and ease of use. Built with no moving parts, this EM lock delivers trouble-free operation and ensures secure locking at all times, making it ideal for both fire/life safety applications and general security installations.

Perfect for access-controlled doors and restricted areas, the YALE magnetic lock combines strength, durability, and sleek design. Its anodized aluminum housing provides long-lasting protection, while the adjustable mounting bracketmakes installation flexible and straightforward.

Key Features:

• 🔒 High Holding Force: Up to 272kgs for enhanced security

• 🌡️ Wide Operating Temperature: -10°C to 55°C, suitable for varied environments

• ⚡ Dual Voltage Flexibility: Selectable 12V or 24V DC operation

• 📏 Compact & Sturdy Design:

  • Magnet size: 250 x 42 x 26mm

  • Armature size: 180 x 38 x 11mm

• ⚙️ Low Power Consumption: 480mA ±10% @ 12V DC

• 🛠️ Adjustable Mounting Bracket: Easy and precise installation

• 💡 Durable Build: Anodized aluminum housing for long service life

Why Choose the YALE 272kg Magnetic Lock?

Whether for offices, commercial buildings, or high-security zones, this lock ensures secure, reliable, and maintenance-free performance. Its simple, fail-safe design guarantees that your premises remain protected without the risk of mechanical failure.
